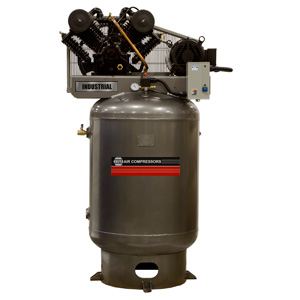

Industrial Heavy–Duty Simplex Packages

 Industrial
Features:
  • Ideal for auto repair shops, tire shops, body repair, dry cleaning business, productions operations, automated machinery as well as general industrial applications
  • Taper roller bearing on crankshaft and inserts on connecting rods
  • Splash-type lubrication and finned intercooler for higher efficiency
  • Concentric valves – easy replacement
  • Oil sight gauge
  • 80 vertical/horizontal and 120 gallon ASME tanks
  • Single phase (5 and 7.5 hp only) and three phase industrial Baldor electric motor
  • Magnetic starters are shipped on all units
  • Two Year Parts and Labor Warranty
    Note – running these units from a generator voids the warranty.
  • Napa Mounting Kit 82-4676 recommended for proper installation.
 Heavy-Duty 5 hp Two-Stage Electric
  • True 5 hp cast iron industrial/commercial compressor, low 800 rpm, cast iron crankcase, cylinders and heads
  • 80 vertical/horizontal and 120 gallon ASME tanks
Heavy-Duty 7.5 hp Two-Stage Electric
  • Low 600 rpm, 4-cylinder cast iron pump
  • 80 vertical/horizontal and 120 gallon ASME tanks
Heavy-Duty 10 hp Two-Stage Electric
  • 800 rpm, 4-cylinder cast iron pump
  • 80 and 120 gallon horizontal ASME tanks
 Simplex
Simplex Simplex Simplex Simplex Simplex Simplex Simplex Simplex Simplex Simplex Simplex
Part Number
Tank
Type
Weight
(lbs)
Dimensions
L x W x H (in)
Motor (hp)
Electrics
(V/Phase/Hz)
Capacity
(cfm @ 175psi)
Max
Pressure
(psi)
Pump Speed
(rpm)
82-348-HAT
 80 gal Horizontal 580 71 x 25 x 46 5 230/1/60 16 175 800
82-348-HAT 208
 80 gal Horizontal 580 71 x 25 x 46 5 200/1/60 16 175 800
82-348-HBT
 80 gal Horizontal 580 71 x 25 x 46 5 208-230/3/60 16 175 800
82-348-HBT 460
 80 gal Horizontal 580 71 x 25 x 46 5 460/3/60 16 175 800
82-348-VAT
 80 gal Vertical 580 41 x 24 x 73 5 230/1/60 16 175 800
82-348-VAT 208
 80 gal Vertical 580 41 x 24 x 73 5 200/1/60 16 175 800
82-348-VBT
 80 gal Vertical 580 41 x 24 x 73 5 208-230/3/60 16 175 800
82-348-VBT 460
 80 gal Vertical 580 41 x 24 x 73 5 460/3/60 16 175 800
82-349-HAT
 120 gal Horizontal 700 75 x 27 x 51 5 230/1/60 16 175 800
82-349-HAT 208
 120 gal Horizontal 700 75 x 27 x 51 5 200/1/60 16 175 800
82-349-HBT
 120 gal Horizontal 700 75 x 27 x 51 5 208-230/3/60 16 175 800
82-349-HBT 460
 120 gal Horizontal 700 75 x 27 x 51 5 460/3/60 16 175 800
82-378-HAT
 80 gal Horizontal 720 71 x 25 x 44 7.5 230/1/60 24 175 600
82-378-HAT 208
 80 gal Horizontal 720 71 x 25 x 44 7.5 200/1/60 24 175 600
82-378-HBT
 80 gal Horizontal 720 71 x 25 x 44 7.5 208-230/3/60 24 175 600
82-378-HBT 460
 80 gal Horizontal 720 71 x 25 x 44 7.5 460/3/60 24 175 600
82-378-VAT
 80 gal Vertical 720 41 x 24 x 71 7.5 230/1/60 24 175 600
82-378-VAT 208
 80 gal Vertical 720 41 x 24 x 71 7.5 200/1/60 24 175 600
82-378-VBT
 80 gal Vertical 720 41 x 24 x 71 7.5 208-230/3/60 24 175 600
82-378-VBT 460
 80 gal Vertical 720 41 x 24 x 71 7.5 460/3/60 24 175 600
82-379-HAT
 120 gal Horizontal 790 75 x 27 x 4 7.5 230/1/60 24 175 600
82-379-HAT 208
 120 gal Horizontal 790 75 x 27 x 4 7.5 200/1/60 24 175 600
82-379-HBT
 120 gal Horizontal 790 75 x 27 x 4 7.5 208-230/3/60 24 175 600
82-379-HT 460
 120 gal Horizontal 790 75 x 27 x 4 7.5 460/3/60 24 175 600
82-308-HBT
 80 gal Horizontal 803 71 x 25 x 44 10 208-230/3/60 32 175 800
82-308-HBT 460
 80 gal Horizontal 830 71 x 25 x 44 10 460/3/60 32 175 800
82-308-VBT
 80 gal Vertical 750 41 x 24 x 71 10 208-230/3/60 32 175 800
82-308-VBT 460
 80 gal Vertical 750 41 x 24 x 71 10 460/3/60 32 175 800
82-309-HBT
 120 gal Horizontal 830 75 x 27 x 49 10 208-230/3/60 32 175 800
82-309-HBT 460
 120 gal Horizontal 830 75 x 27 x 49 10 460/3/60 32 175 800
82-309-VBT
 120 gal Vertical 890 40 x 30 x 74 10 208-230/3/60 32 175 800
82-309-VBT 460
 120 gal Vertical 890 40 x 30 x 74 10 460/3/60 32 175 800
Magnetic starter included on all units
